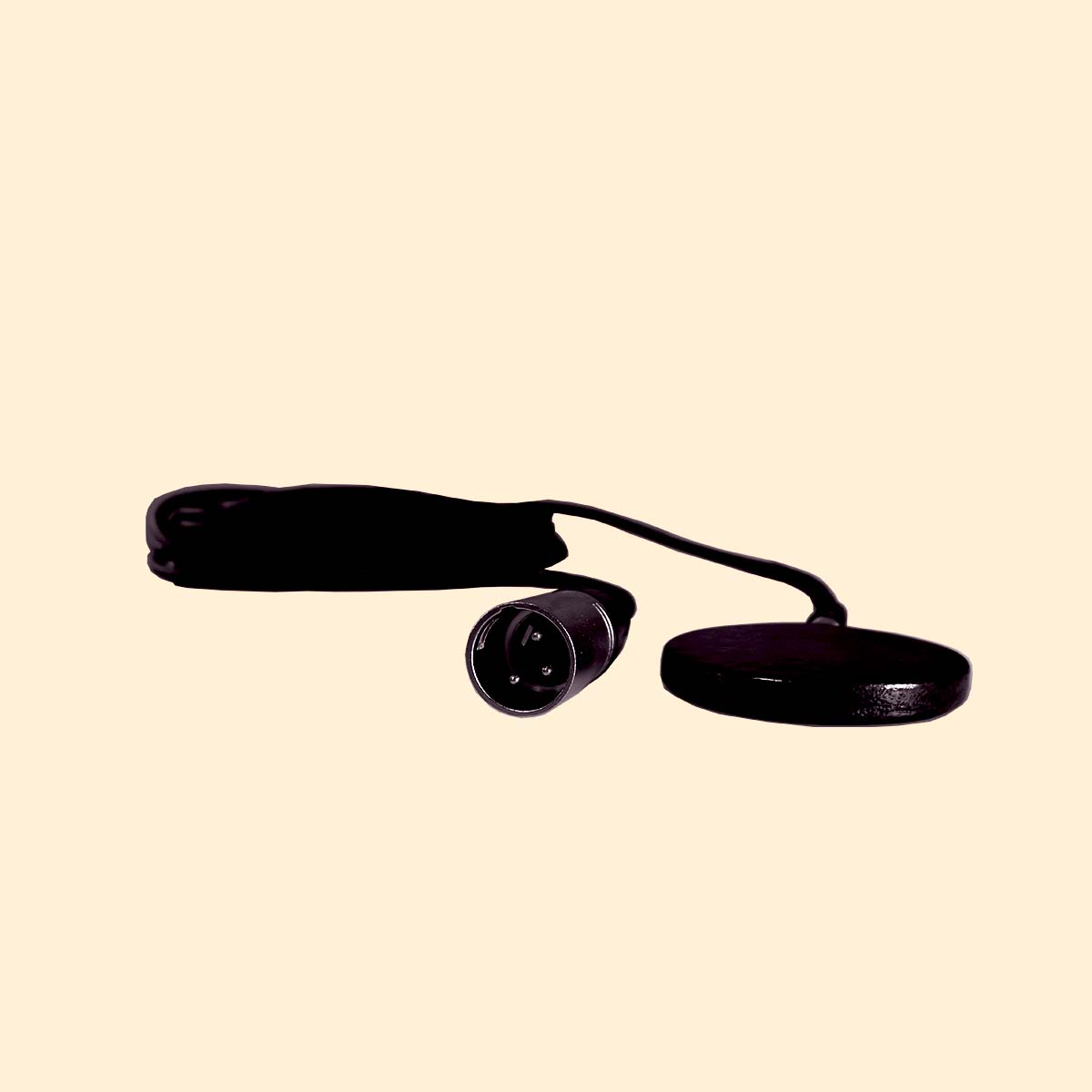

PRO 10

Description

Our DolphinEar PRO series is unique. It provides a balanced output for use with professional audio mixers, consoles, and recorders. It is equipped with standard XLR 3 connector and it does NOT use any power (not even phantom power) to operate due to its large area hydrophone element.

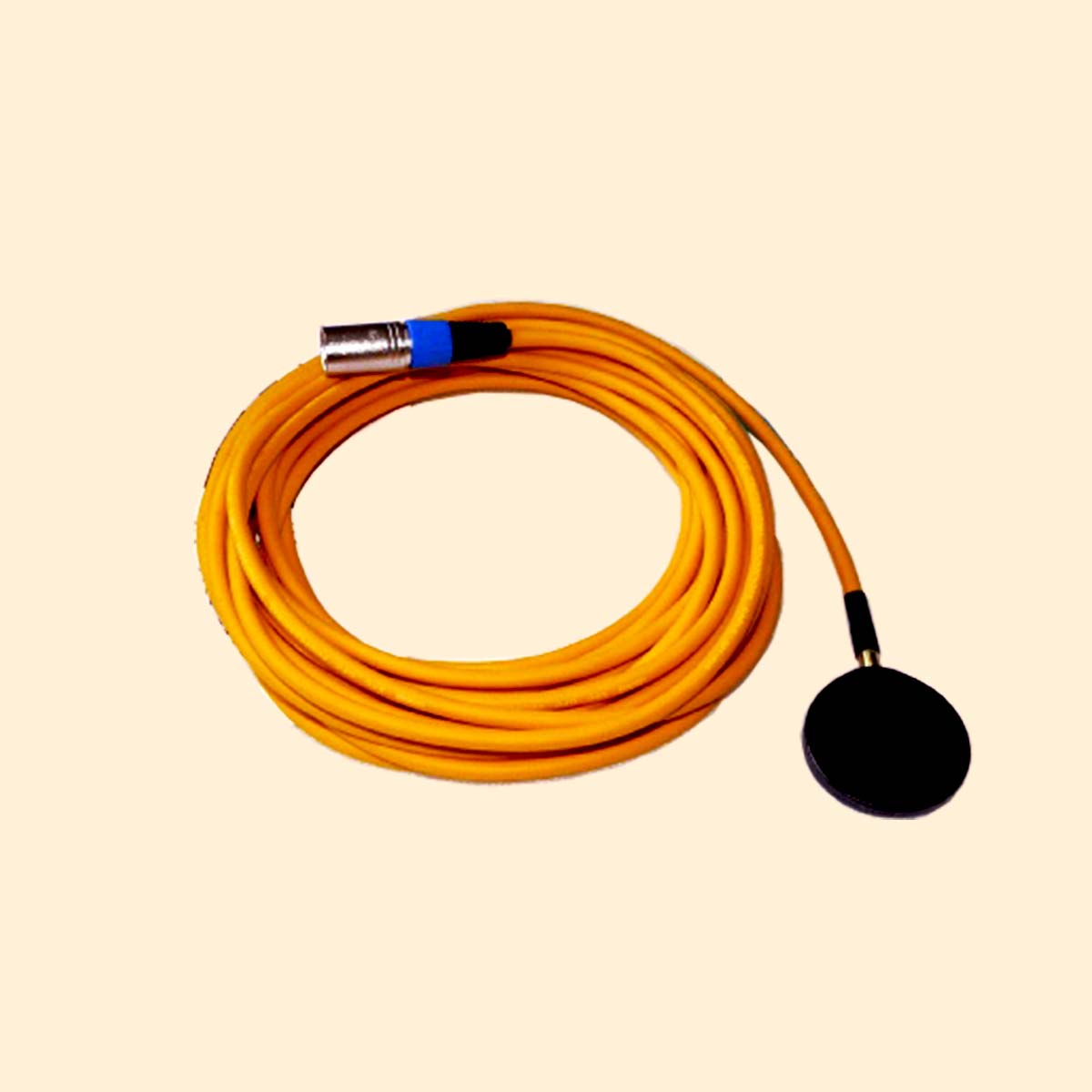

Cable lengths up to 100 metres are available on special order. Please enquire.

FEATURES:

• Waterproof: to 100 meters (328 feet)

• Wide Frequency Response: 1-24,000 Hz

• Balanced Output: Standard 3 pin XLR connector

• Rugged: withstands Ocean pressures and handling abuse.

• FREE Spectrogram software: displays, anaylzes and records sounds on your Windows PC.

---

PRO-series SPECIFICATIONS

Balanced Output: 600 ohms (approx)

Frequency Range (Overall): 1 Hz – 24000 Hz*

Hydrophone Transducer Type: MPC (Piezo).

Configuration: OmniDirectional.

Hydrophone Packaging: Rugged epoxy case.

Hydrophone Dimensions: approx. 60mm Dia x 7.5 mm thick.

Cable Type: High Quality, Low Noise, Neoprene/PVC jacketed  – 6.4mm diameter.

Cable Length: 10 metres (32 feet).

Depth Rating: 100 metres (328 feet).

Preamp: None. Direct connection to your sound mixer, preamp, or recorder.

Output Connector: XLR 3 plug.

Power: none. Phantom power not required. Withstands up to 48v.

In Package:

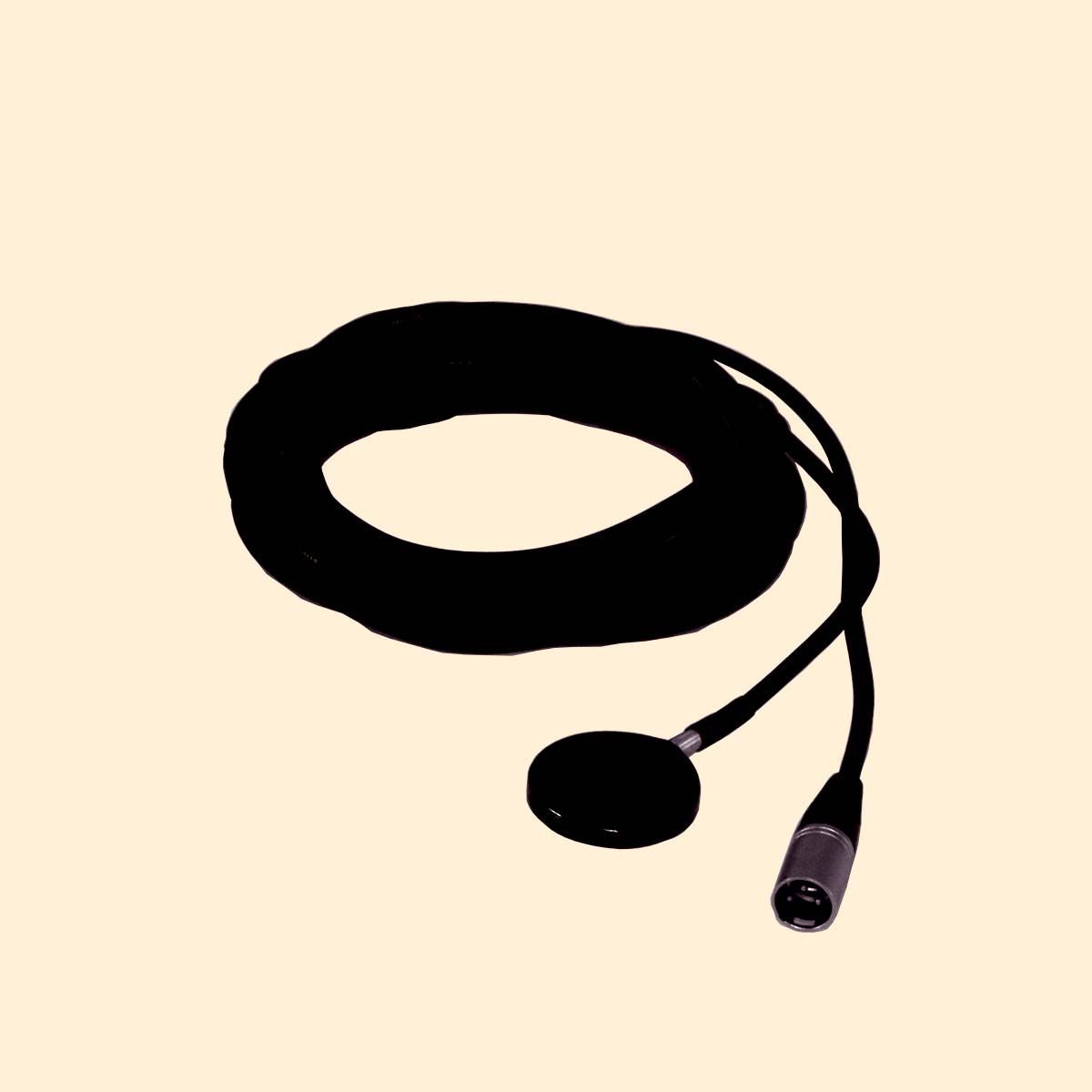

• PRO series hydrophone with 10 metre/32 foot cable
• User manual

Note: Unlike our DE200 series there is no preamp or earphones included.  This hydrophone is designed to be integrated into existing sound and recording systems. Spectrogram Software is downloaded from the DolphinEar website via a link found in the manual.

* Note: Hydrophone bandwidth 1 Hz-24000 Hz. Limitations may be imposed by the equipment that the PRO10 connects to.
